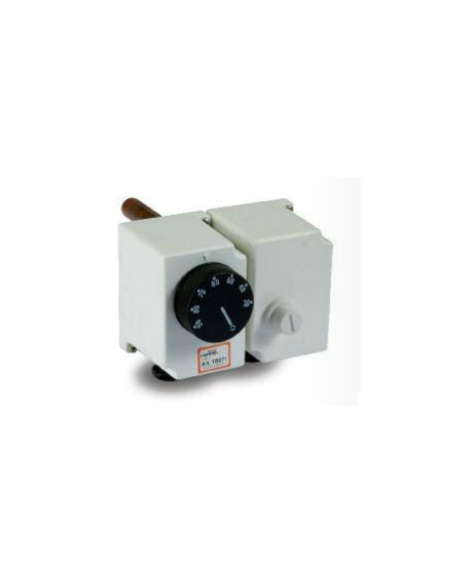

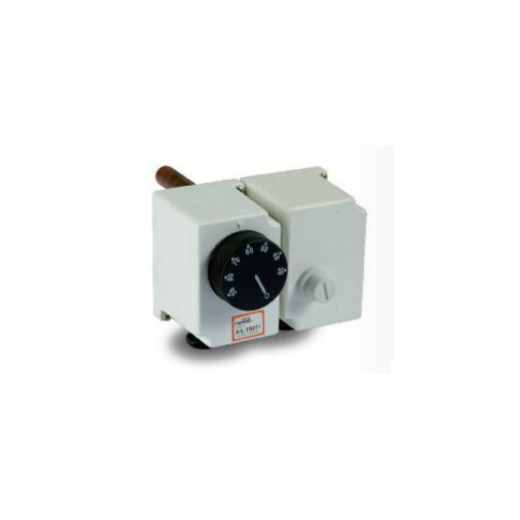

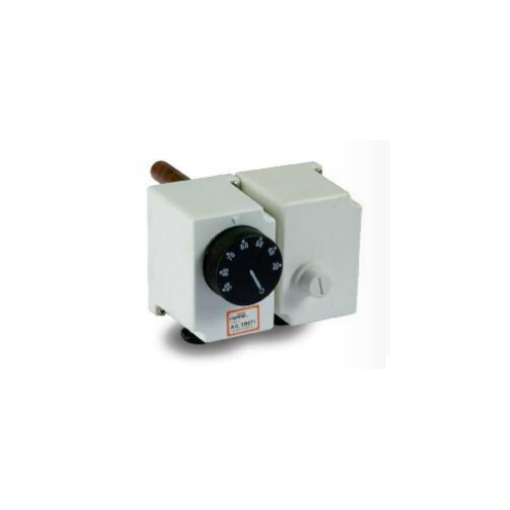

Double Immersion Thermostat with Safety Limiter

CHARACTERISTICS Double Immersion Thermostat with Safety Limiter:

• Output with 1 potential-free switched contact: 16 (5) A / 250V AC
• Fixed differential ON / OFF operation 4 / -2 ° C
• Contact material: AgNi 90/10.
• 1 Temperature level with continuous regulation
• Sheath for immersion mounting
• Graduated scale from 30 ° C to 90 ° C
• Safety limiter T = 100 ° C
• Maximum temperature of the pod: 99 ° C
• Degree of protection IP20.
• Waterproof case 105 mm. 1/2 "G conical.
• Dimensions (AxPxH) 108 x 56 x 98.5 mm
