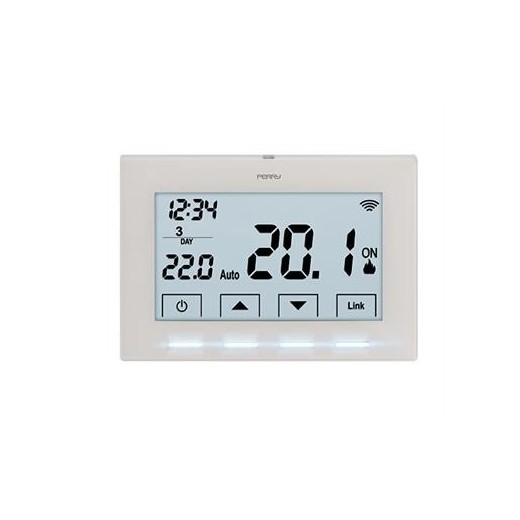

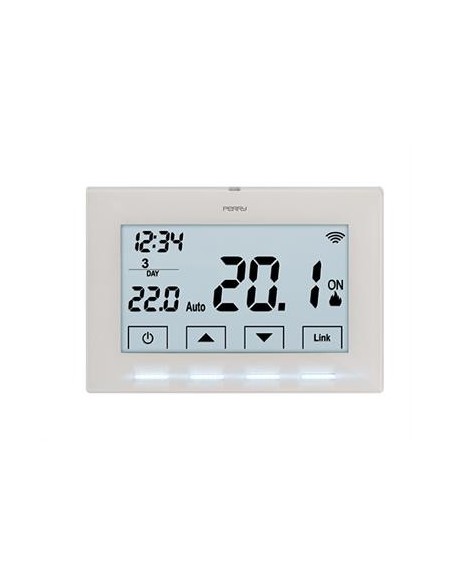

Digital chronothermostat WI-FI PERRY

CHARACTERISTICS Digital chronothermostat WI-FI PERRY:

• "Glass" effect on the entire front surface of the thermostat.
• Power supply: 2 3V-2x1.5V AA alkaline batteries.
• 4.3 "backlit LCD display.
• ON / OFF operation with adjustable differential of 0.2-0.3-0.5-0.7 ° C or modulator with control period of 10-15-20-25 min.
• Temperature levels: 10 levels per day. l Command SUMMER / WINTER.
• Connection to the boiler / zone valve: WITH THREADS.
• 868 MHz transmission to the Smartbox

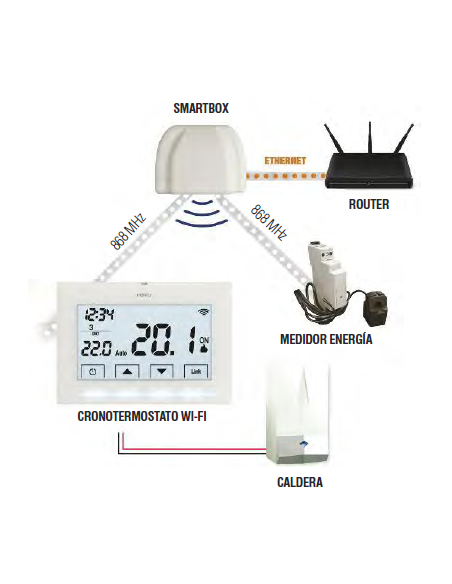

Access to the Internet is done through the Smartbox which, connected by cable to the router (also equipped with Wi-Fi connection), interacts with the associated mobile device (smartphone or tablet) optimizing the use of thermal energy.

The utility of having two separate components (programmable thermostats + smartbox) allows maximum installation flexibility in both new and existing systems, as well as simplifying the installation as much as possible.

The battery power supply of the product allows to replace all the temperature controllers in the existing systems, avoiding laborious modifications in the electrical systems.

The configuration of the Wi-Fi timer thermostat is very simple, it is enough with an Ethernet cable that connects to the router of the house.

In homes with more than one thermal zone, with a SMARTBOX and several programmable thermostats (one for each thermal zone) are sufficient, which further increases efficiency and comfort (Maximum 30 devices).

The electric energy meter is an additional element for calculating energy consumption in real time.

The application has been designed to be very easy to use, maintaining the typical performance of Perry thermoregulators. You have the possibility of:

-manage systems of all types (radiators / radiant panels)

-configure the hysteresis.

-configure up to 10 temperature levels for each day.

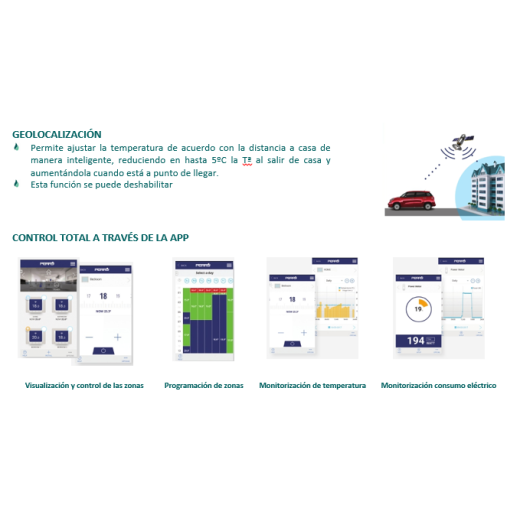

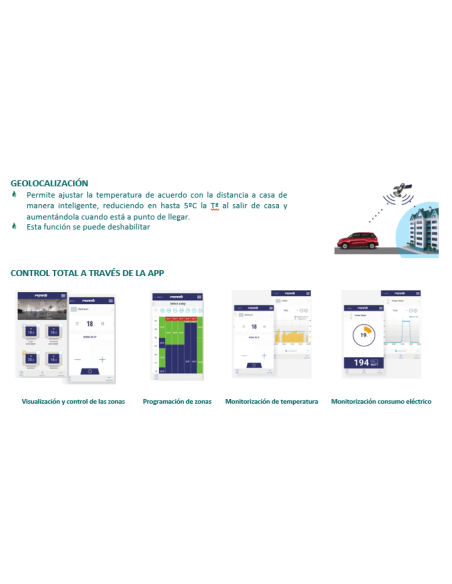

By installing the Perry Wi-Fi chronothermostat, consulting the specific application, it will be possible to see historical graphs related to the trend of the ambient temperature with respect to the set temperature. In the same chart, the warm-up time is also shown with histograms. By doing so, the user can realize how, when and how much their home has warmed up.

Reading these graphs could be the first step in optimizing weekly programs. Thermotechnical studies state that lowering the programmed temperature by 1 ° C corresponds to a saving of 7%.

ADVANCED FUNCTIONALITY:

• Geolocation: allows you to reduce the temperature compared to that which is outside the home. The Wi-Fi timer-thermostat regulates the temperature intelligently by decreasing it through adjustable X ° C, depending on the distance (up to a maximum of 5 ° C) when leaving the house and raising it when you return.

• Reading of energy consumption: the 1TX ME01WIFI electric energy meter allows you to keep your home's consumption under control through an application or browser.

• Adaptability: works with any type of system (under floor, with radiators or fan-coil) thanks to the operation of on / off or modulation.

• Opening of the window: automatic suspension of the operation when a temperature variation of 2 ° C is detected in X minutes, then the stability of the environment is controlled to restart the system.

• Temperature monitoring: it is possible to monitor and program devices in multiple homes in real time, both from the application for iOS and Android, and from the portal www.perryhome.it

• Consumption under control: the "Perry Chronosmostat" application allows respecting the DPR 74 of April 16, 2013 that establishes the maximum temperature of residential buildings at 20 + 2 ° C. At the programmed temperature, a color corresponds to give an indication Quick visual of consumption.

• White LED backlight: the 4.3 "LCD screen is optimized to see and read information also thanks to the white backlight.

EASY INSTALLATION

The Perry Electric Wi-Fi programmable thermostat, powered by 3V batteries (no need to carry a 230V power supply), allows you to quickly and easily replace traditional thermoregulators.
The configuration of the Wi-Fi chronothermostat does not require complex steps to connect to the network, all you need is an Ethernet cable.
