Reduced price! Panel R50® Eps150-22 Deo SCHUTZ Expand

Panel R50® Eps150-22 Deo SCHÜTZ

SCHÜTZ SCHÜTZ

4018168


New

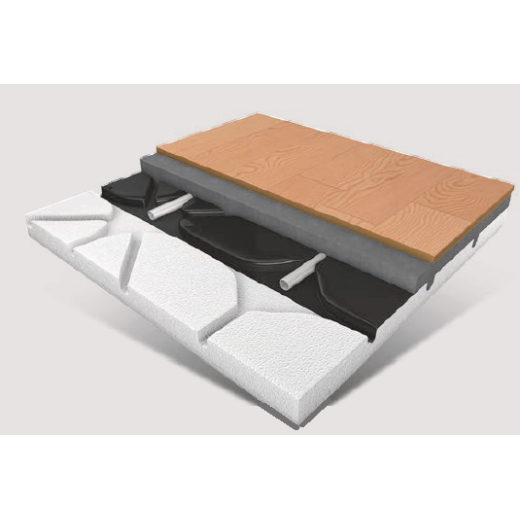

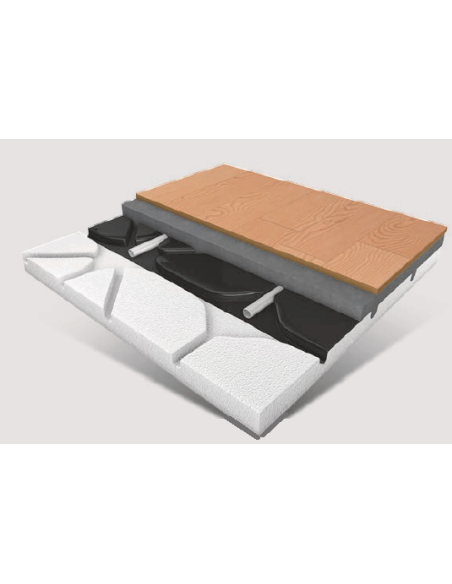

Paneles de aislamiento termo-acústico que permite instalar un suelo radiante confortable, eficiente y duradero.

Su ejecución es rápida y sencilla.

Ofrece las mejores condiciones y óptimos rendimientos para proyectos de renovación de edificios.

Apto solo para tubo de 12 x 1,5 mm.

El precio es por unidad de embalaje: 19 paneles = 22,99 m2.

More details

Estimated delivery date: 20 January 2025
PRODUCTO EN STOCK
4/5 business days international shipping

30.53 €

tax incl.

35.91 €

-15%

CARACTERÍSTICAS DEL Panel R50® Eps150-22 Deo SCHÜTZ:

Formato tipo panel de tetones: un solo operario puede instalar el sistema.

Paneles cubiertos por una lámina conformada por vacío con cuadrícula de 12 cm.

Aislamiento térmico y acústico.

Verificado según normas DIN.

Altura de ejecución mínima, desde 42 mm con aislamiento y capa de recubrimiento incluido.

Resistente a pisadas por llevar los tubos dentro de los paneles.

Para tubo de Ø 12 mm.

Unión de paneles por solapado a presión.

Superficie útil neta por panel 1,21 m².

Permite trazados rectos y en diagonal.

Datos técnicos:

  • Resistencia térmica RD: 0,51 m2 K/W
  • Conductividad térmica λD: 0,034 W/mK
  • Clase material (RF): E (EN 13501-1)
  • Espesor panel: dn = 22 mm.
  • Dimensiones panel:  1.500 x 900 mm.
  • Unidad de embalaje: 1.540 x 450 x 950 mm.
  • Presión de carga máx. con 10 % de reducción espesor: 150 kPa (EN 13163)

No customer reviews for the moment.

Write a review

Tubo Duo-Flex Pe-Xa En Rollo 120 M. SCHÜTZ

Tubo de seguridad de 5 capas.

Fabricado conforme a la norma EN 15875 de polietilenoreticulado según el proceso de peróxido.

Incluye barrera contra la difusión de oxígeno según DIN 4726.

El precio es por unidad de embalaje: Cada rollo 120 m.
